Motorsports-grade wheels: What they are–and why you need them

[GRM+ members read this article first. Subscribe and gain access to more exclusive content for only $3/month.]

Does your car have wheels? Likely yes.

And are those wheels suitable for motorsports? Are they up for hopping curbs, clearing big brakes and aiding fast pit stops?

Maybe?

So what exactly makes a wheel track ready? Follow along for some features to consider when shopping.

Unique Features

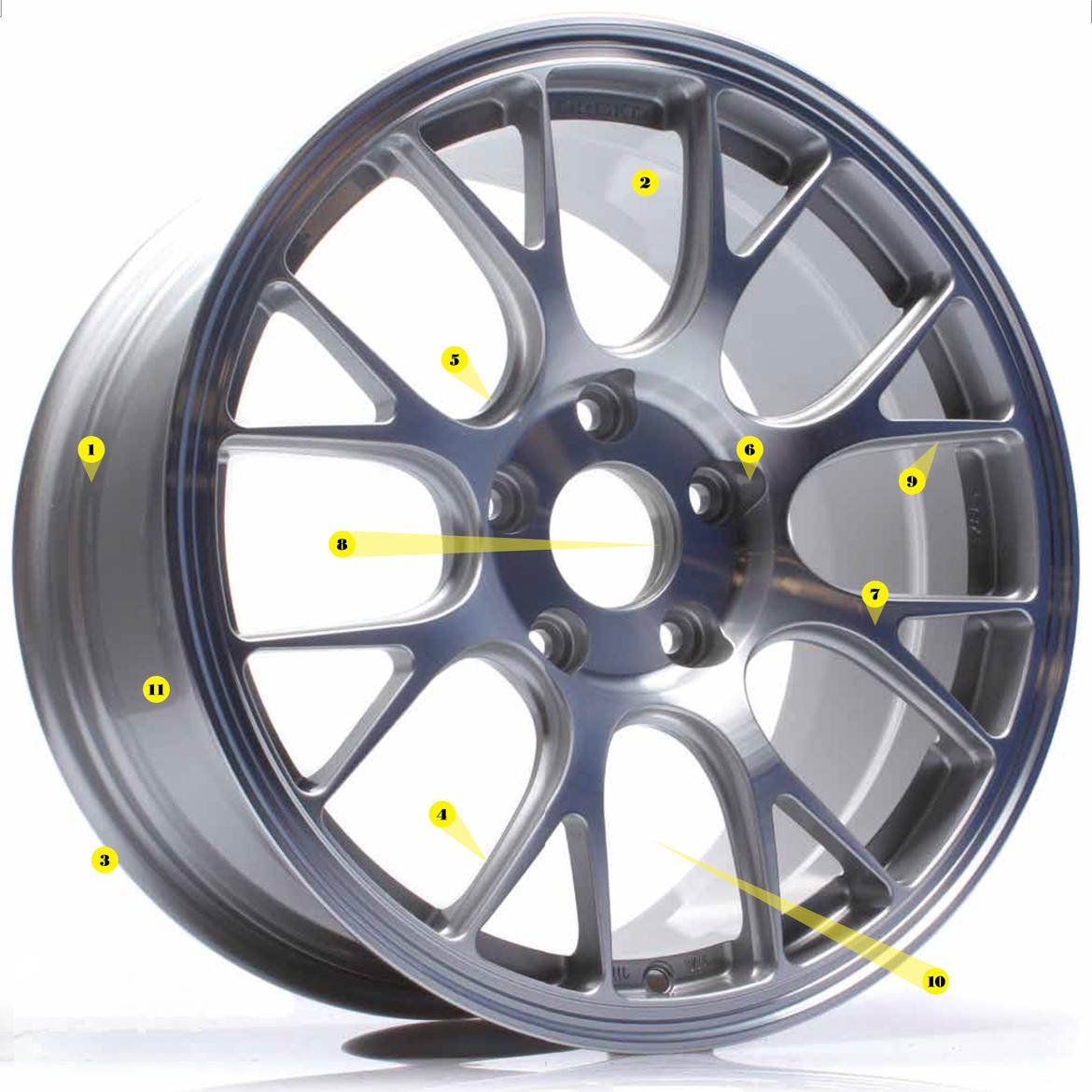

Shown here: BimmerWorld’s forged TE:AL TA16 features lots of brake clearance, knurled beads and pocketed center pad. Various BMW fitments. $539.99+

1. Deep, knurled, beefy beads to prevent tire slippage, a likely outcome when mixing sticky tires, aggressive pad compounds and extra downforce. Some motorsports wheel builders leave these knurled beads unpainted, too, to further increase grip.

2. Room for today’s big, big-brake kits is a must, meaning generous spoke clearance as well as a wheel barrel devoid of the dips and contours often found on street wheels. Building a wheel without a drop well or tapered barrel that’s still strong enough for motorsports use often requires starting with a thicker, heavier forged blank–and this adds to the cost.

3. Strong lips that can handle those curbs at Daytona’s chicane.

4. A modern technique to save weight while adding strength? Milled or I-beam spokes. Again, though, this adds cost.

5. A pocketed center pad–again, an extra machining process–can shed ounces.

6. Roomy lug sockets that will easily, quickly accept an impact socket while not requiring those small, tuner-style lug nuts.

7. Concave construction: Spokes that stick out can quickly become a liability during side-to-side racing.

8. Hub-centric fitment: Odds are you’re not going to find centering rings in the pro paddock.

9. Does cleanliness matter? Yes. How easy is it to clean and inspect the spokes between events?

10. While cooling fans, sadly, have fallen out of favor, an efficient motorsports wheel won’t block airflow. Gotta keep those brakes cool and happy.

11. An ideal balance of strength versus weight, likely meaning forged or flow-form construction. In addition to simply comparing weights, check out the load ratings, too.

BONUS: Thanks to modern machining techniques, we’re seeing more wheels built for specific, motorsports-friendly applications–like 15x9-inch wheels for the early Miata or 11-inch-wide wheels for the rear of an E46-chassis M3. Custom fitments? Could also be on the table.

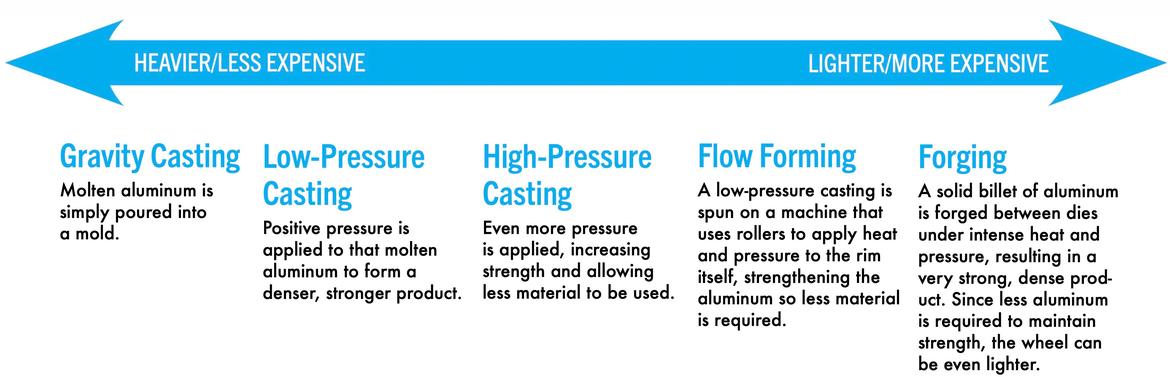

How Much vs. How Strong

Not all aluminum wheels are created equal. As usual, there’s a relationship between price and performance.

Wheel Buyer's Guide: All the Latest Plus Some Timeless Greatest Hits

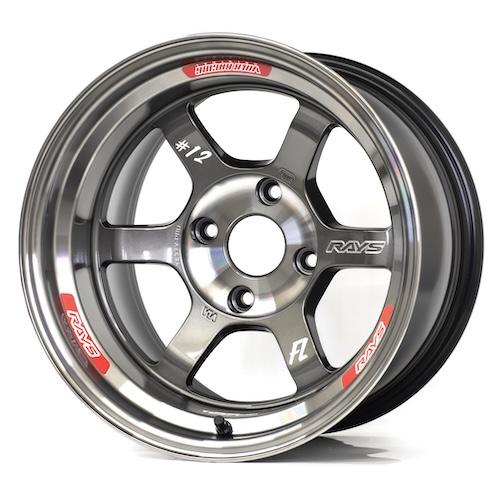

1. The TE37V-PRO, a stiffer version of Volk Racing’s popular forged TE37V, comes in 15-inch sizes, with widths from 8 to 10 inches.
mackin-ind.com
$795+

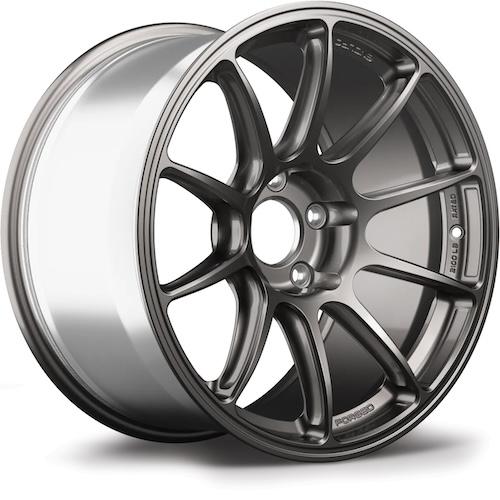

2. Apex’s Forged Enduro Line features reinforced lips and a higher load rating. The SM-10RE, shown here, carries a 2100-pound load rating. The brand’s Sprint version of this basic design has a 1600-pound load rating but, in an 18x10-inch size, weighs 2.5 pounds less.
apexwheels.com
$679+

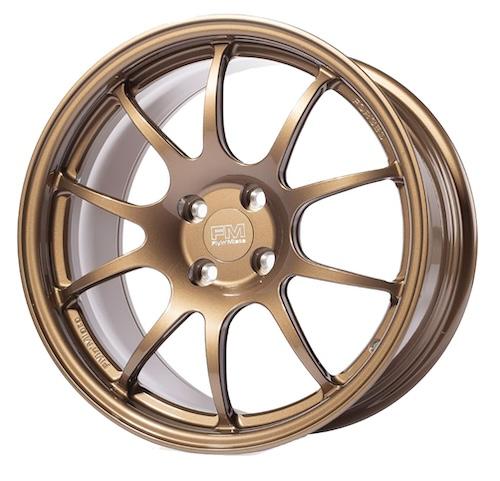

3. Flyin’ Miata designed its forged 17x9-inch Tobu to fit inside stock ND-chassis Miata fenders. At 15.5 pounds, it’s lighter than stock while upping the load capacity from 728 pounds to 1213.
flyinmiata.com
$494.10

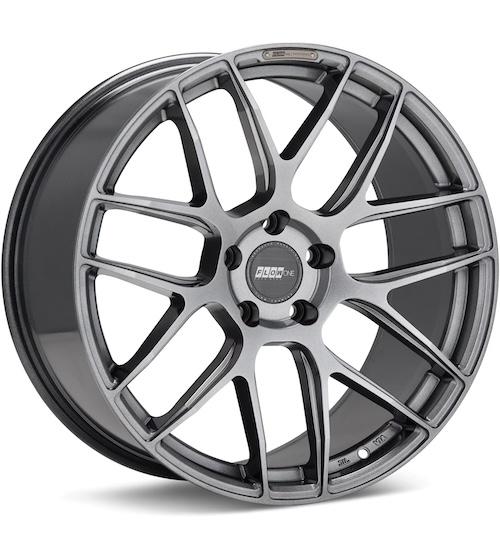

4. From Tire Rack: the Flow One Race Spec F2, a flow-formed wheel available in 18- and 19-inch rim diameters.
tirerack.com
$111+

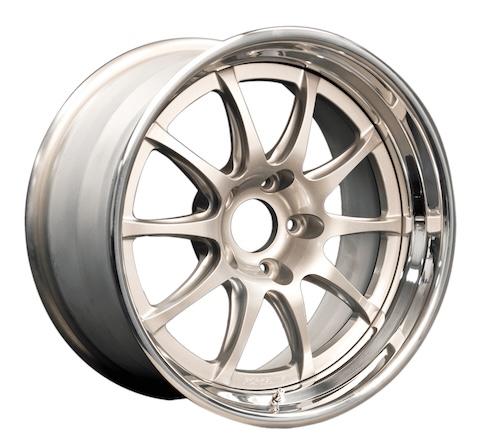

5. Billed as the brand’s latest three-piece competition wheel, Forgeline’s GZ3R features I-beam spokes, ARP hardware, generous brake clearance, forged centers, heat-treated outers and a 1900-pound load rating.
forgeline.com
$1595+

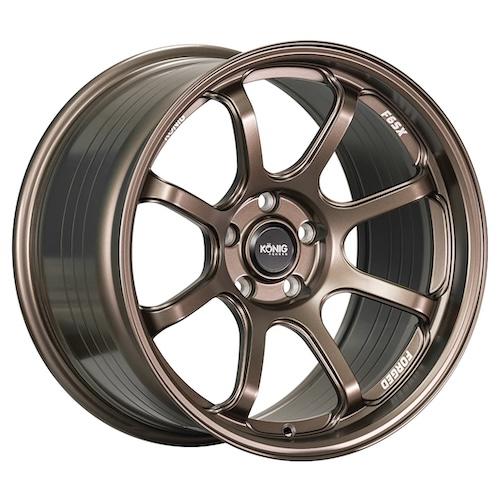

6. König’s forged lineup now includes the eight-spoke F6SX: knurled beads along with 17- and 18-inch sizes.
konigwheels.com
$544+

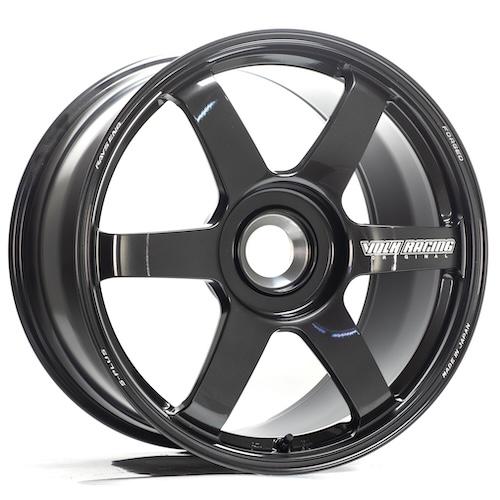

7. For center-lock applications like modern Porsche 911s, there’s the Volk Racing TE37 SAGA S-plus Center Lock. Like the rest of the TE37 line, it’s forged in Japan.
mackin-ind.com
$1975+

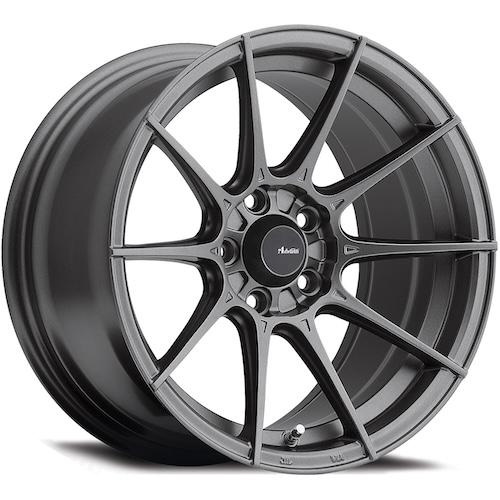

8. In addition to wheels from König, Enkei, Team Dynamics and more, Good-Win Racing carries the Advanti Racing line, including the Storm S1: less than 17 pounds for an ND Miata-friendly 17x8-inch size.
good-win-racing.com
$257.38

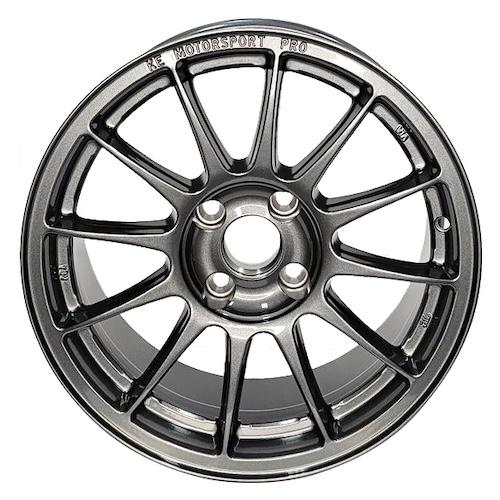

9. The KE Motorsport PRO T12 from Phil’s Tire Service is aimed at the Spec Miata market: knurled beads, open lug pocket and, of course, a hub-centric 15x7-inch size.
philstireservice.com
$149+

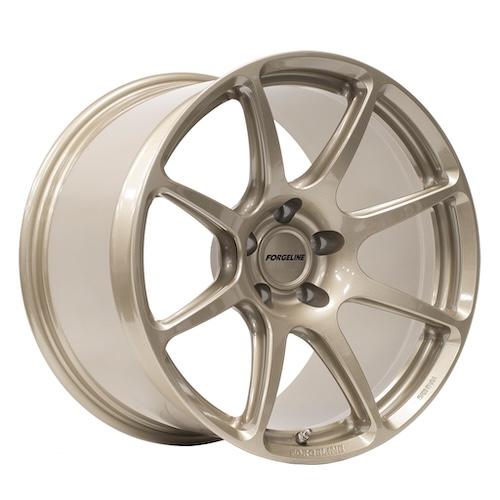

10. Forgeline’s GE1R 5-Lug features forged, one-piece construction along with I-beam spokes, a 2100-pound load rating and custom fitments.
forgeline.com
$1895+

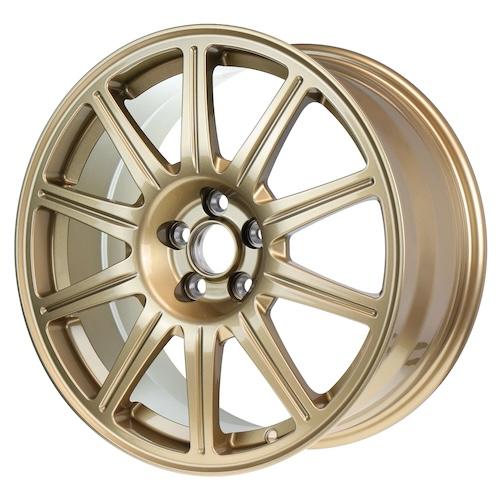

11. Looks like an OG Subaru WRX STi wheel, but Mach V’s new Stellar comes in both 5x100 and 5x114 bolt patterns. This 17x8-inch wheel is fully forged.
fastwrx.com
$549

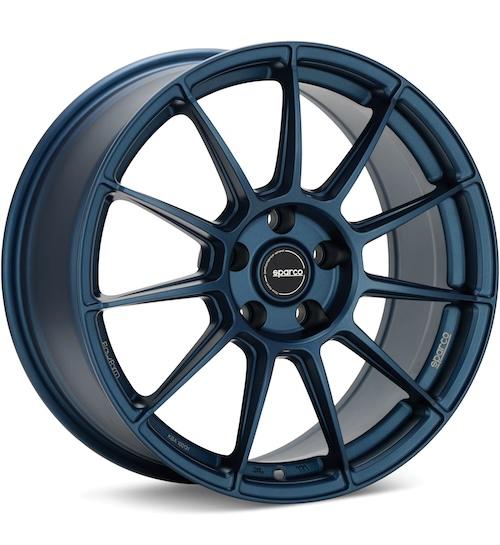

12. New and from Sparco’s flow-formed lineup: the 18-inch-diameter FF4.
tirerack.com
$251+

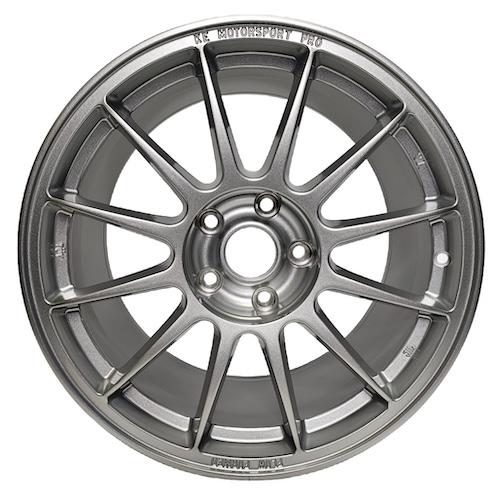

13. A wheel specifically for the Spec3 and Spec E46 market from Phil’s Tire Service: The flow-formed KE Motorsport T12 Gen2 features raw lug pockets, a reinforced inner lip and a knurled bead area.
philstireservice.com
$209+

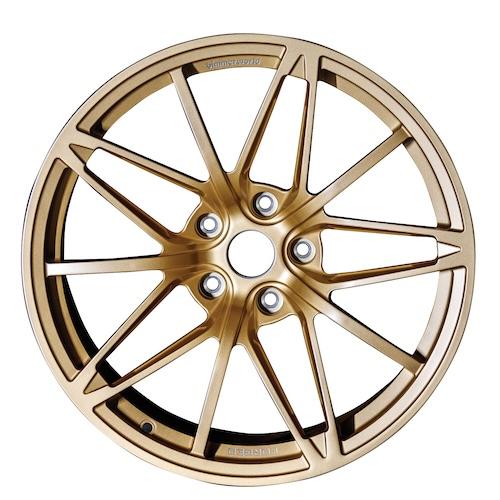

14. BimmerWorld’s new TA55 offers retro looks but modern, fully formed construction. Features knurled beads and sized for the later M2, M3 and M4.
bimmerworld.com
$3199.99 (per set)

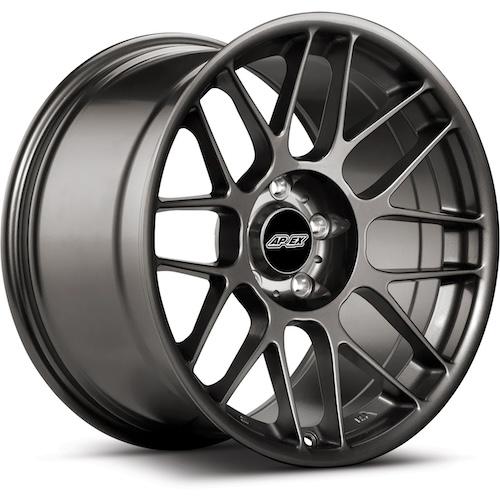

15. Some 15 years later, Apex still offers its ARC-8, billed as its bestselling, least-expensive flow-formed wheel.
apexwheels.com
$379+

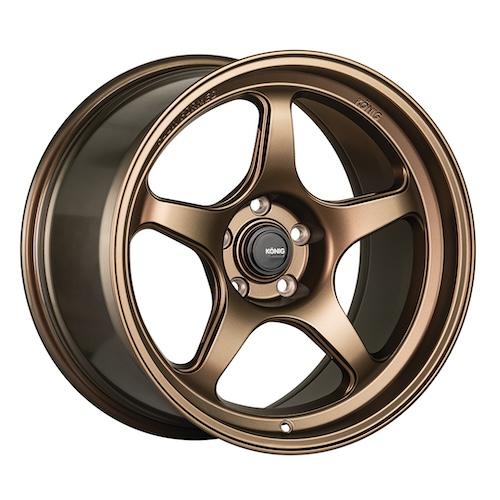

16. König keeps expanding its flow-formed offerings. Among the latest: the Hyperspec, with sizes ranging from 15x7 to 18x10.5 inches.
konigwheels.com
$190.40+

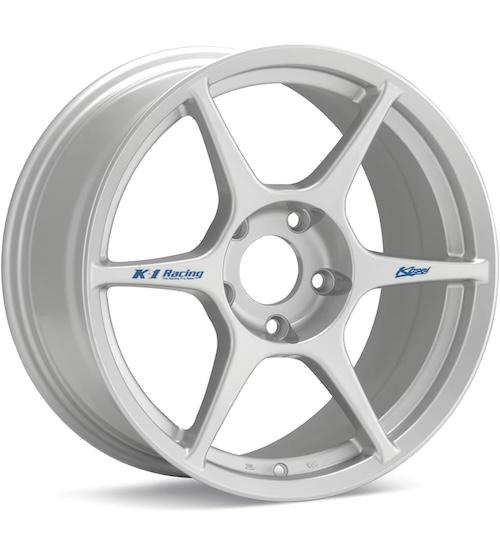

17. A classic, Rad-era motorsports wheel that still has its fans: Tire Rack offers the Kosei K1 Racing in 15- and 17-inch sizes. It’s gravity cast yet relatively light while offering plenty of lug room.
tirerack.com
$170+

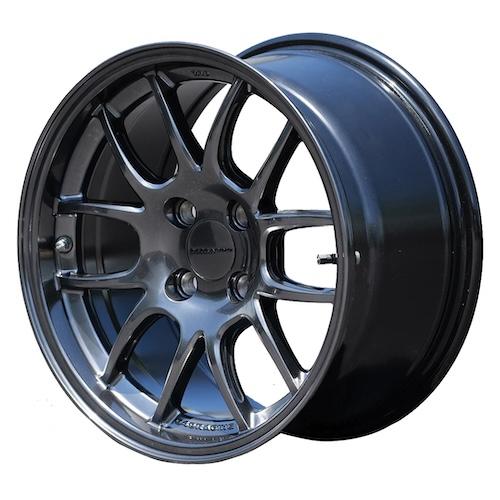

18. 949 Racing has put its popular 15x7-inch 6UL back into production: flow-formed construction, 11.7 pounds and a knurled bead.
949racing.com
$169

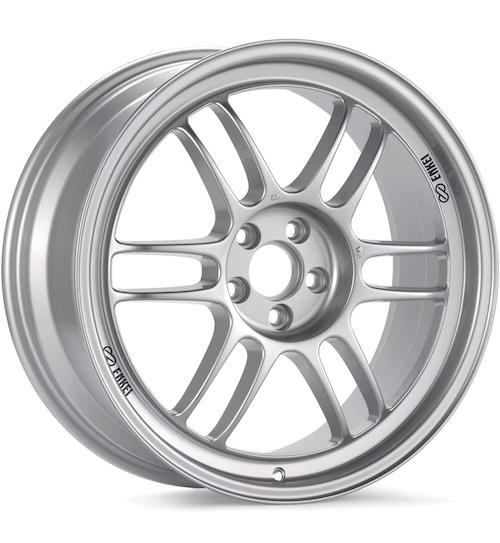

19. A modern classic from Tire Rack: The 15x7-inch Enkei RPF1 checks in just below the 10-pound mark.
tirerack.com
$207.90+

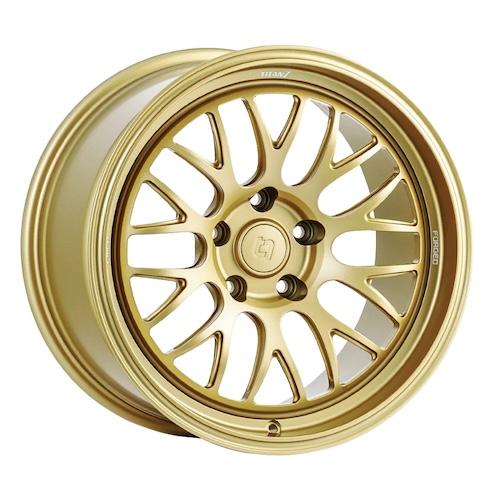

20. The new T-M20 from Titan 7 marries classic looks with forged construction, knurled bead seats and pocket hubs.
titan-7.com
$2620+ (per set)

Join Free Join our community to easily find more Buyer's Guide and Wheels & Tires articles.

Comments

Tom1200 UltimaDork
4/16/25 10:52 a.m.

I always love this information because I've run the same two sets of wheels on the Datsun for decades. Read I'm not up on the latest technology.

Keith Tanner GRM+ Memberand MegaDork
4/16/25 11:30 a.m.

Thanks for including the Tobu in the list, although the flow formed FM Kogeki is more popular as it's priced more in line with Miata budgets. Available in 15x7 to 17x9 in Miata-specific fitments and exclusive to FM.
https://flyinmiata.com/collections/wheels

Keep in mind that motorsport wheels may be built with less strength margin than street wheels - they should be considered a consumable. Be especially wary of wheels that are significantly lighter than others in the same size with the same construction. One of the popular Miata wheels had a problem with that a few years back, they were particularly light in the 17x9 size but they cracked quite quickly and a number of them came apart on track.

Also, not noted in the guide - forged wheels have a superior grain structure to cast or flow formed wheels. They're more likely to bend than crack, which is a better failure mode. Also, flow formed wheels only have the improved grain structure from flow forming on the barrel, the center of the wheel has the same properties as a cast wheel.

One last note - the Advanti Storm pictured above (available from a variety of sources) is a good illustration of point 7. The spokes protrude from the wheel face around the lip. This makes them a hassle when mounting tires but also makes them prone to damage in wheel to wheel racing.

RaceRed New Reader
7/21/25 1:36 p.m.

Just curious if you've ever come across ForgeStar brand flow-formed wheels and what your thoughts were on that particular brand? MW Company, LLC, purchased this brand some time ago, and also holds Weld Wheels under their corporate hat.

jcc New Reader
7/21/25 5:29 p.m.

" 4. A modern technique to save weight while adding strength? Milled or I-beam spokes. Again, though, this adds cost."

That is at best, a slightly misleading comment.

IndustryPartner New Reader
8/25/25 9:14 p.m.

Yes, track specific wheels have many features not found on street wheels which add to the specific job they are intended to perform.

PTSRaceTire&Wheel has the largest assortment of Spec Miata, Spec E30 and BSpec wheels in the country.

The NEW KE Motorsport PRO K10 wheel has the necessary features that make it perform flawlessly, inner reinforced lip, paint less knurled beads, 10 spoke design (slightly concave).

Also, the NEW Team Dynamics PRO RACE 1.2FF brings back the iconic design that has been associated with Motorsport performance wheels for 30 years. Same design but Flow Formed, knurled beads, and reinforced inner lip with the C-channel design.

Enjoy
